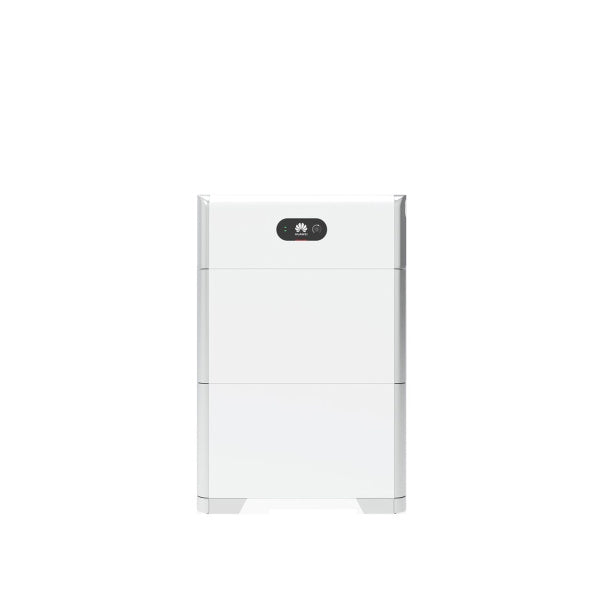

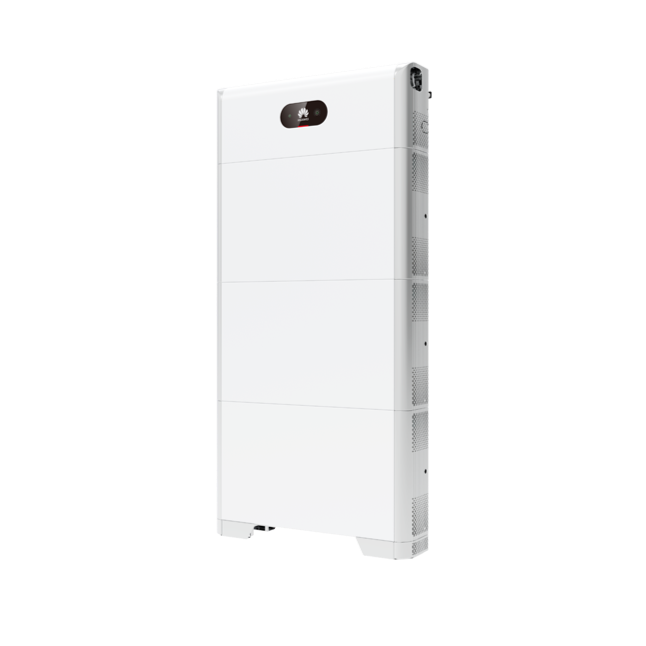

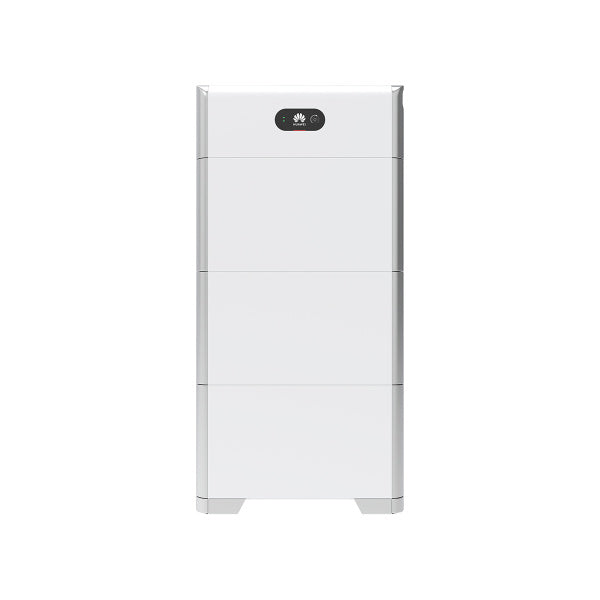

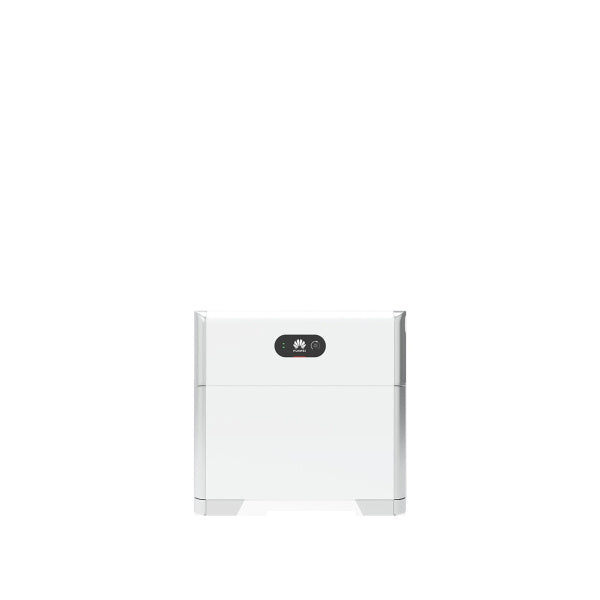

Huawei LUNA 2000-S0

Battery Cell Type: LiFePO₄
Energy / Capacity: 5 kWh usable per module
Number of Battery Modules: 1 – 3 × 5 kWh
Nominal Voltage (Single Phase): 450 V
Operating Voltage (Single Phase): 350 – 560 V
Nominal Voltage (Three Phase): 600 V
Operating Voltage (Three Phase): 600 – 980 V
Depth of Discharge (DoD): 100 %
Communication Interface: RS485 / CAN (parallel operation only)
Over- / Undervoltage Protection: Yes
Overcurrent Protection: Yes
Over- / Undertemperature Protection: Yes
DC Disconnect Switch: Integrated in system
Installation Location: Indoor and outdoor use
Operating Temperature / Humidity: −20 to +55 °C, 5 – 95 % RH
Protection Class: IP66
Cooling Type: Natural convection
Mounting Type: Floor- or wall-mounted

Scope of Delivery:
– 1 × Huawei LUNA2000-5-E0 battery module (5 kWh)
– 1 × LUNA2000-5KW-C0 power module
