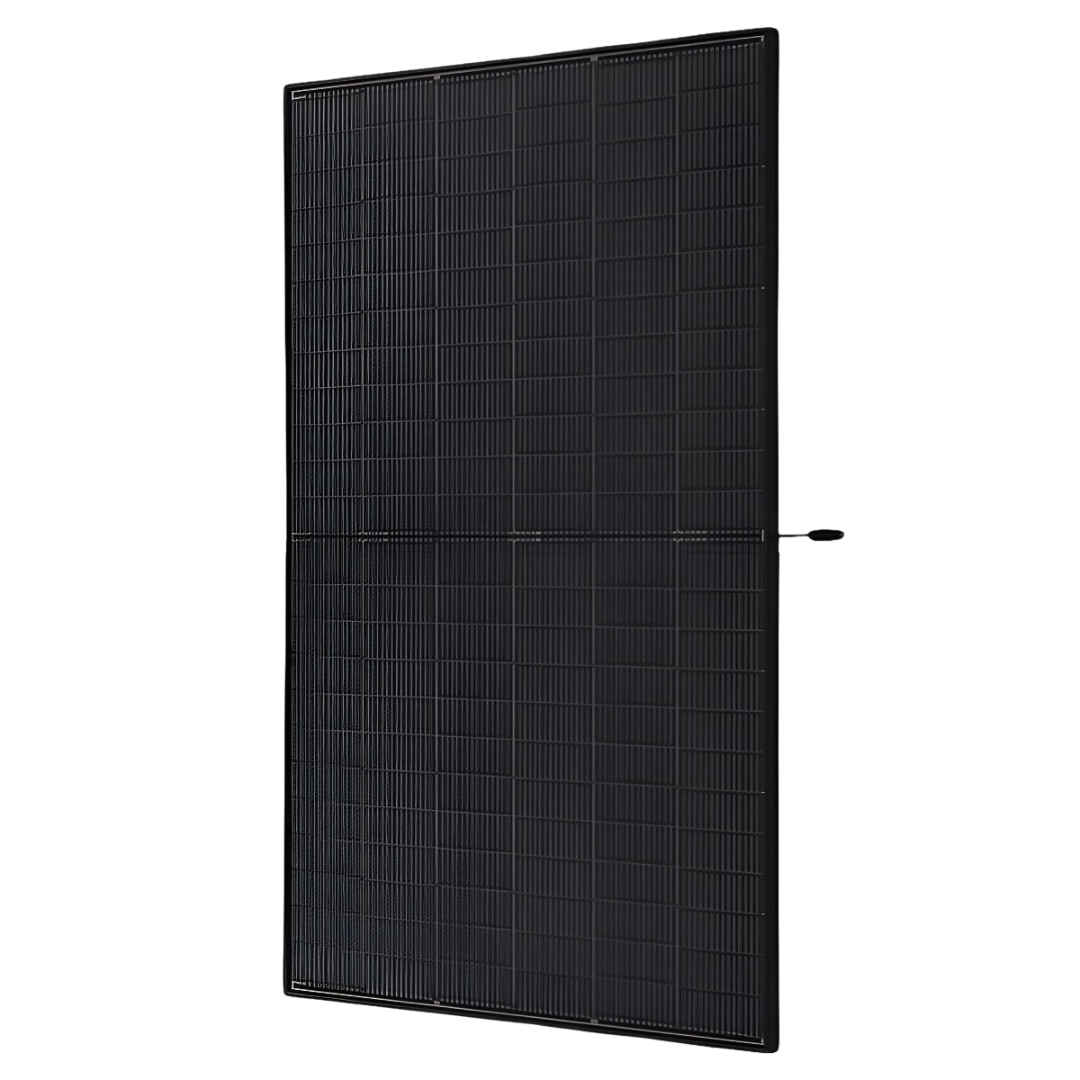

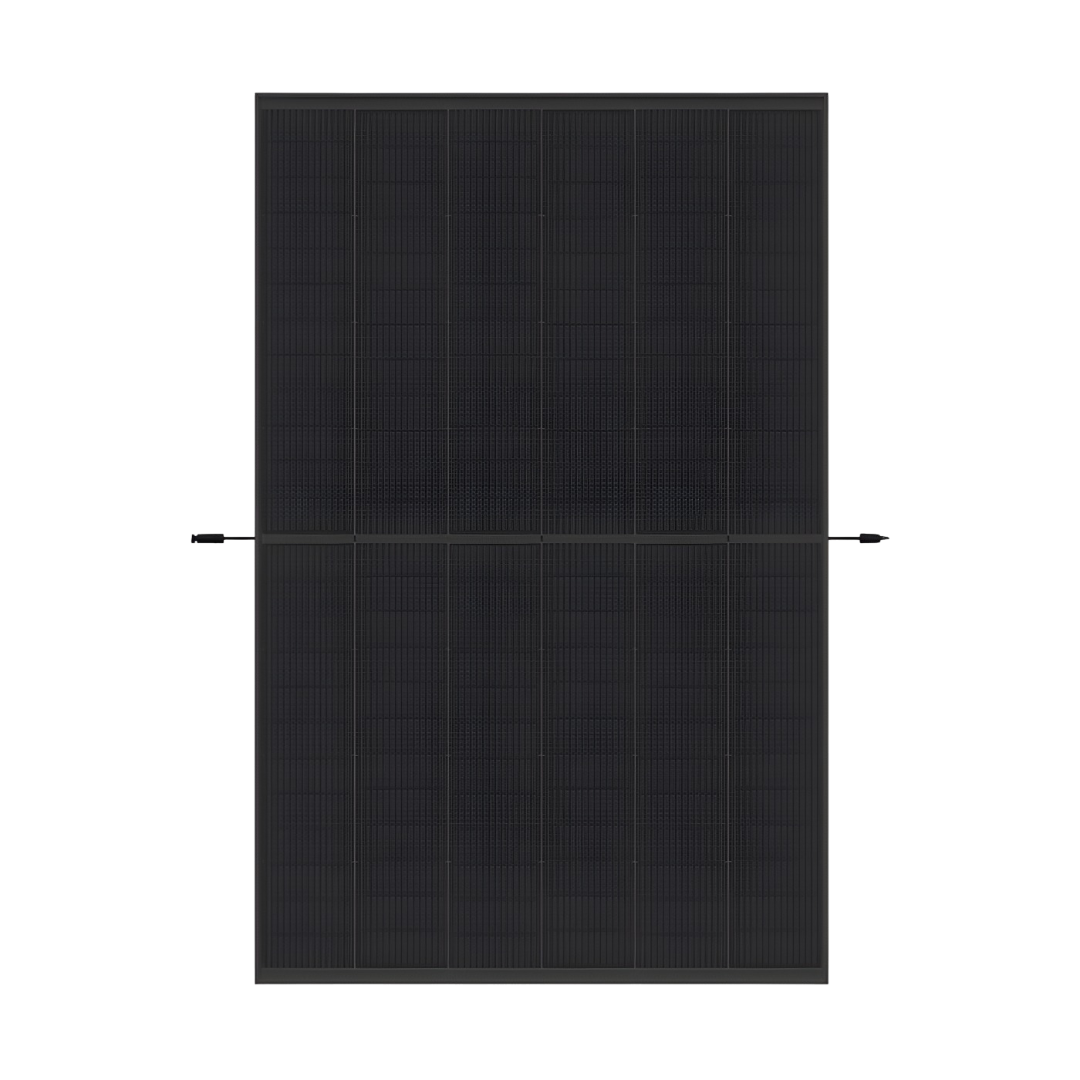

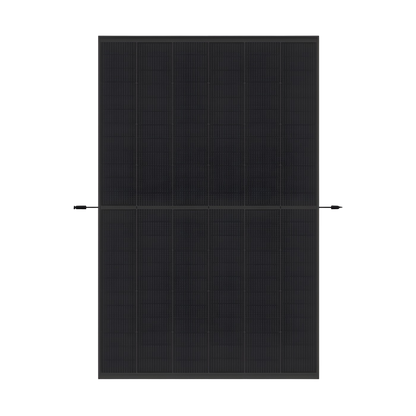

Trina Vertex S+ NEG9RC.27 Bifacial Double Glass

Cell Type: Monocrystalline Bifacial
Open Circuit Voltage (Voc): 52.2 V
Short Circuit Current (Isc): 10.67 A
Nominal Current (Impp): 10.01 A
Nominal Voltage (Umpp): 44.0 V
Temperature Coefficient (Voc): -0.24 % / °C
Max. System Voltage (DC): 1,500 V
Solar Cable: 1.1 m length, 4 mm², MC4 connector
Operating Temperature Range: -40 °C to 85 °C

Additional Features:
– Snow Load: Up to 5,400 Pa
– Wind Load: Up to 4,000 Pa
– Protection Class: IP68
– Certifications: IEC 61215, IEC 61730, IEC 61701, IEC 62716, UL 61730

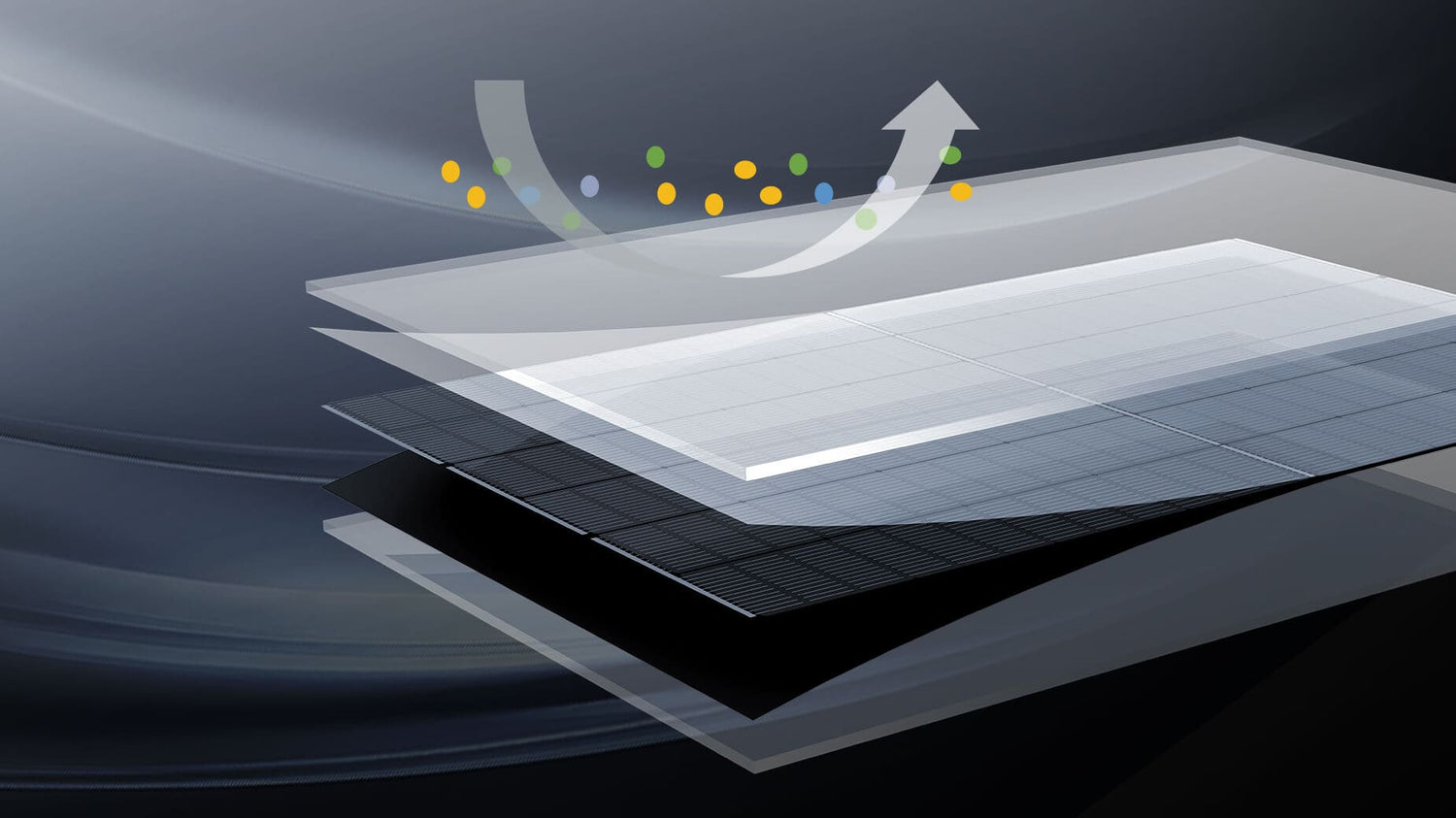

– High-Transparency Glass: 1.6 mm heat-tempered, anti-reflective coated glass on both sides
– Frame: 30 mm black anodized aluminum alloy
– Bifaciality Factor: Up to 85 % for increased energy yield

• Datenblatt DE
